Introducing Slide – the minimalist sliding glass door

Enjoy the view with Slide, our minimalist sliding glass door. LuxView creates inspired environments that enhance the views and design aesthetic of your space by seamlessly integrating the indoors and outdoors. We lead the industry with European design and American craftsmanship.

CONCEALED FRAMES AT HEAD AND JAMBS
FOR FRAMELESS AESTHETICS
EXPANSIVE SIZE CAPABILITIES
SIZE TO ORDER AVAILABLE UP TO 90 SQ FT
AUTOMATION CAPABLE
NARROW SIGHT LINES
1 INCH INTERLOCKING STILE
MULTIPLE GLAZING OPTIONS
INCREASED STRUCTURAL, THERMAL, AND ACOUSTIC PERFORMANCE

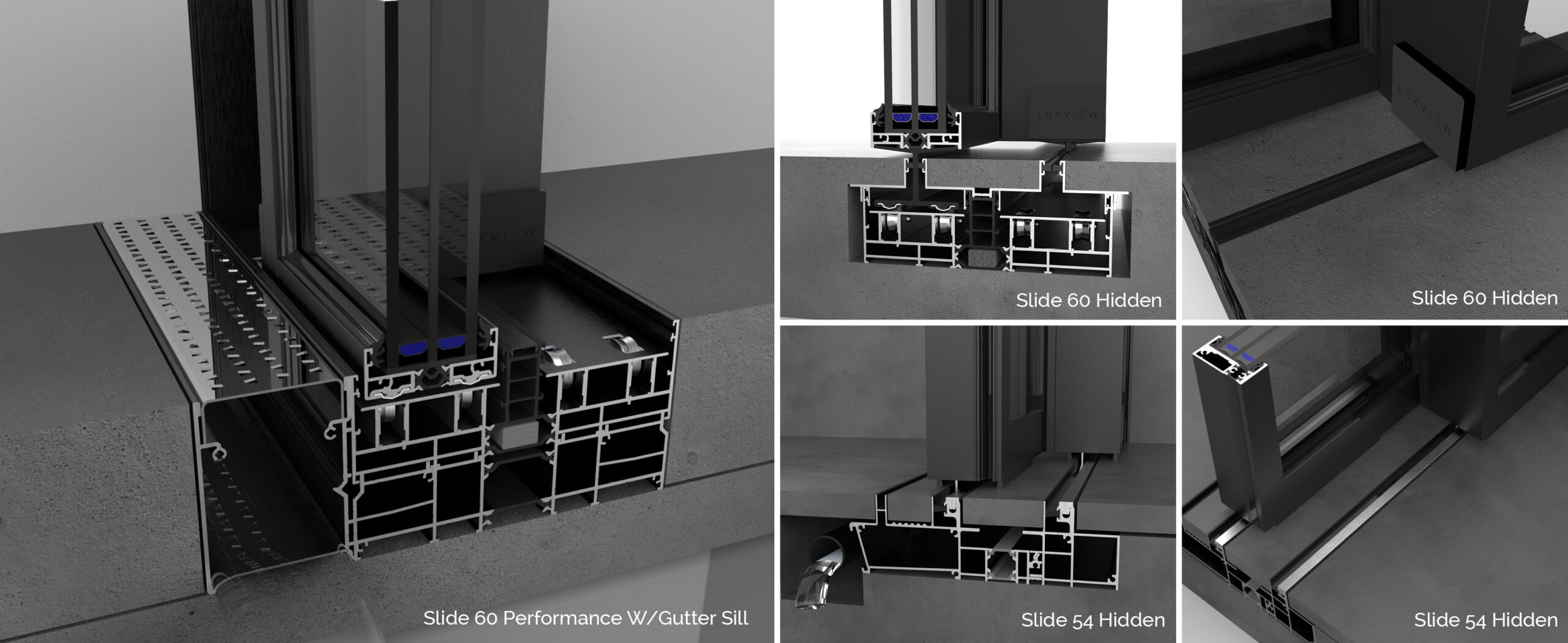

CONFIGURABLE FLUSH SILL OPTIONS
FOR FRAMELESS AESTHETICS
Minimal Sight Lines

Enjoy the views, not hardware. LuxView frames and sashes are intentionally designed to preserve the design intent of your home.

Massive Glass Door Sizes

Industry leading, massive glass sizes allow LuxView glass to span areas that are impossible for others. The only limits are your imagination. Need some inspiration? Check out our gallery.

Effortless Sliding Movement

Precision engineered hardware and thoughtful design makes our sliding glass doors nearly effortless to move. Feel the difference with LuxView.

Get A Quote

  • Accepted file types: dxf, dae, obj, pdf, rvt, skp, docx, xls, xlsx, jpg, png, Max. file size: 35 MB.

Request a Sample

Our Difference is in the Details

At LuxView, the details are what makes the difference and set us apart. From European designed systems, to our best-in-class finishing technology and materials, we set the bar high, and then exceed it.

LuxView Butterfly Hinge Detail
LuxView Slide Track Close Up
Precision sliding glass door hardware concealed tracks
LuxView Slide 4 Track Closeup
LuxView Slide Lock Detail

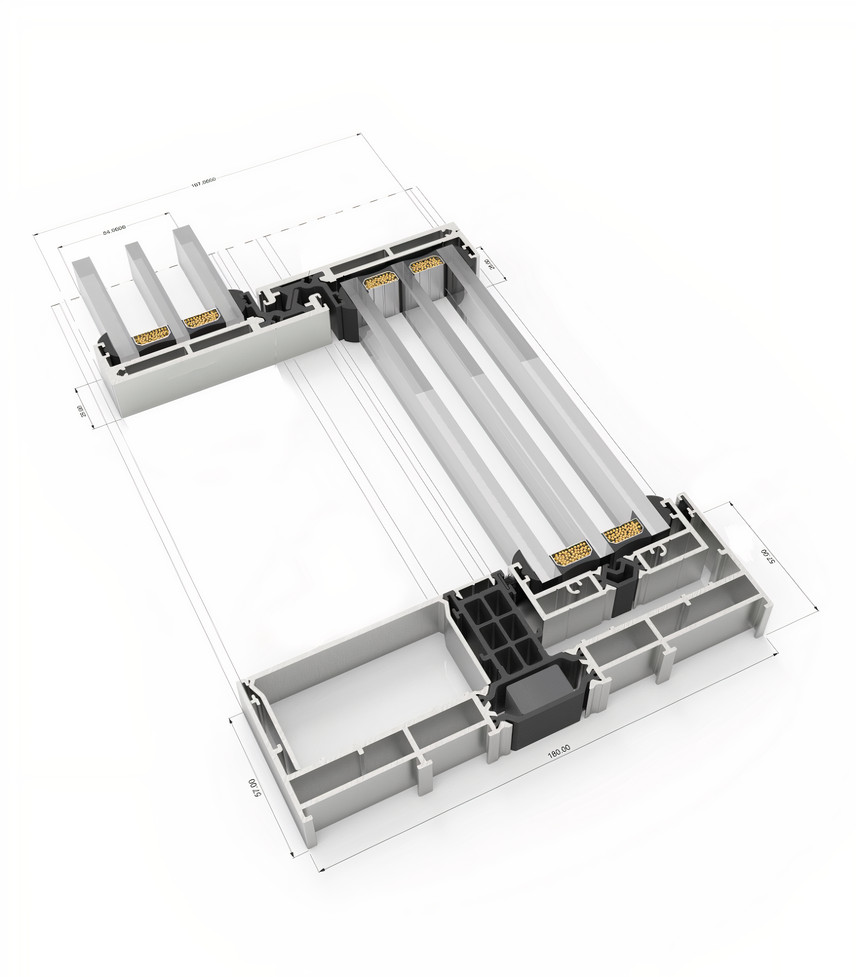

Sliding Door: Basic Specifications

  • Maximum Panels: 6 Bi-Parting/ 3 Uni-directional or Pocketing
  • Maximum Panel Width: 157 ½
  • Maximum Panel Height: 157 ½
  • Frame Depth:
    • 1 Track = 3 ¼
    • 2 Track = 7 1/16"
    • 3 Track = 10 15/16”
  • Pocket Depth: 4 5/8” / Pocket
  • Frame Width: 2 9/16”
  • Panel Width: 3 ¼
  • Minimum Glazing Thickness: 1 7/16”
  • Maximum Glazing Thickness: 2 1/16”
  • Configurations: Stack, Multi-Slide, Pocket
  • Max Manual Operation: 882 lbs.
  • Max Automated Operation: 1,543 lbs.

Sliding Door: Opening Possibilities

  • Sliding of 1, 2, 3, 4, & 6 sashes
  • Possibility of 1, 2, or 3 tracks
  • Possibility of interior and exterior corner sash at 90° without mullion
  • Galandage possibility in 1, 2, 3, & 4 sashes


Sliding Door: Testing Information

  • Transmittance: 0.9 W/m2K
  • Maximum Acoustic Insulation: Rw = 43 dBA
  • Air Permeability: (EN12207): Class 4
  • Water Tightness: (EN 12208): Class 7A/9A
  • Wind Resistance: (EN 12210): Class C3

Pick a Color. Order a Frame Sample.

Eclipse
Grey Escape
Emery Silver
